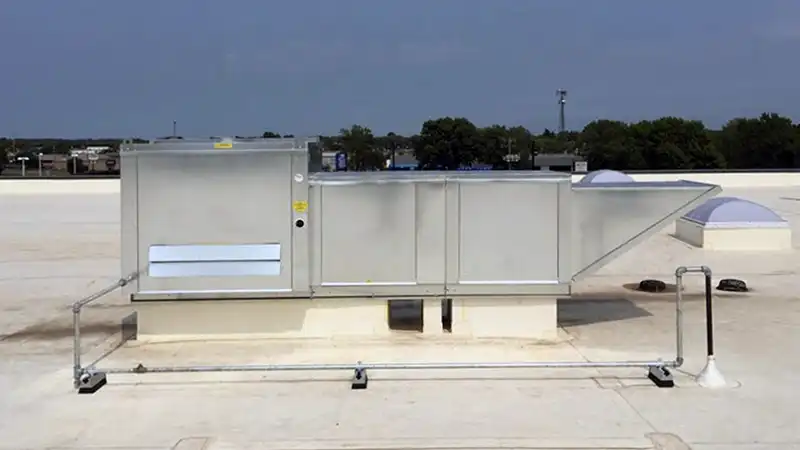

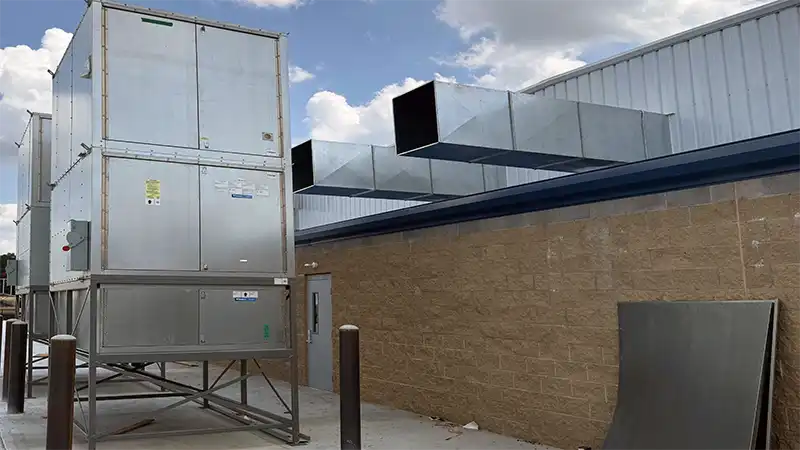

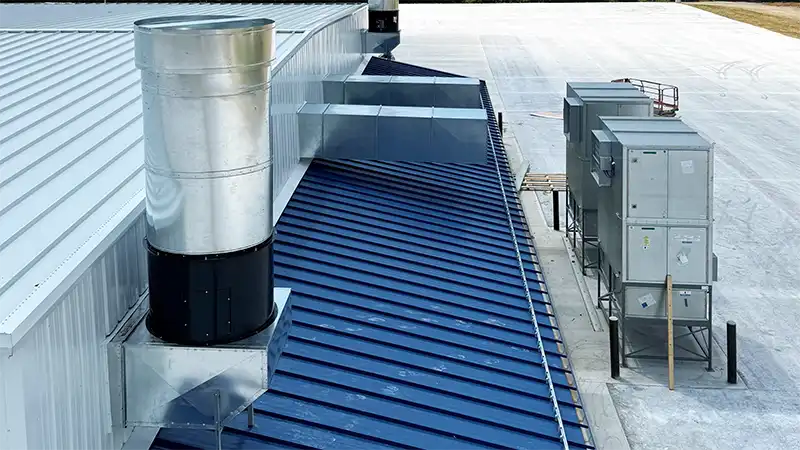

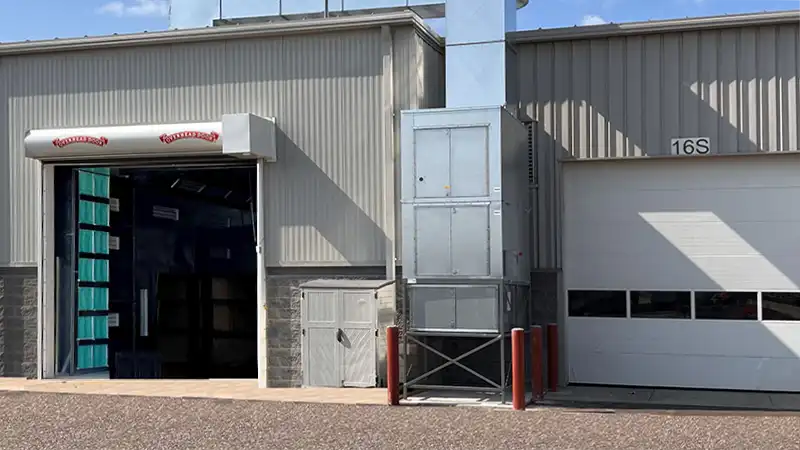

Air Makeup Units - Paint Booths

Standard Equipment:

• Variable Airflow Control System
• Spray Mode / Flash Mode / Cure Mode
• Deluxe Digital Control Panel
• 110° F Temperature Rise
• 100% Fuel Efficiency.
• G-90 Galvanized Casing
• Intake Screen
• Flame Failure Light
• Natural Gas or Propane
• Gas Pressure: 7 Inches to 5 Pounds
• ANSI w/ 2 Solenoid Gas Valves

• Exhaust Variable Frequency Drive
• Intake Variable Frequency Drive
• Automatic Booth Pressure Balancing
• Variable Airflow Gas Controls
• Automatic Discharge Damper
• V-Bank Pre Filter w/ Cleanable Filters
• 100% Replacement Air
• Electric Current: 208-230-460/60/3
• ETL Label
• Motor - ODP - High Efficiency EPACT
• 401M - Maxitrol Control System

Variable Air Volume - VAV:

The variable air volume control systems give you precise control over the air flow when you are painting, flashing, and curing. This allows you to adjust for solvent base or water base paints, different sized pieces of work, and different outside air conditions like -10° F and 5% humidity or  +95° F and 85% humidity.

We offer the ability to flash and cure at 100% airflow and high temperatures. We can provide 100% airflow and a 110° F temperature rise over the outside air temperature. 20° F outside our system can provide 100% airflow at 130° F. This system allows you to control how much air is used by the air make-up unit allowing you to control operational costs as well. System includes Variable Frequency Drives for both intake and exhaust volume control. Includes Programmable Digital Control Panel.

Auto Pressure Balance - AB:

The Automatic Balancing System speeds up or slows down the exhaust fan to keep the pressure balanced in the booth and the airflow at a proper speed. Set the pressure desired in the booth and the system will automatically adjust the speed of the exhaust fan to maintain the desired preset pressure. This system also speeds up the exhaust fan as the exhaust filters load up with overspray allowing longer times between filter changes.
