Preparation and Blast Booths

Sanding and Blast Booths

We offer industrial paint preparation booths, blast booths, personnel lift systems, dust collection, media recovery and more. We will work with you to provide an industrial finishing system that is integrated in to your overall workflow.

Industrial applications often move work through their facilty with some type of material handling systems. Whether you use 3 axis cranes, overhead conveyor systems, floor rail systems, or any other type of system we will work with you to provide a booth that will fit your process.

Code Compliance

All of our sanding and blast booths are designed to meet or exceed the requirements and recommendations of the National Fire Protection Association (NFPA), Standard Number 33, as well as the Occupational Health and Safety Administration (OSHA) CFR 29.1910.107.

Supporting Equipment

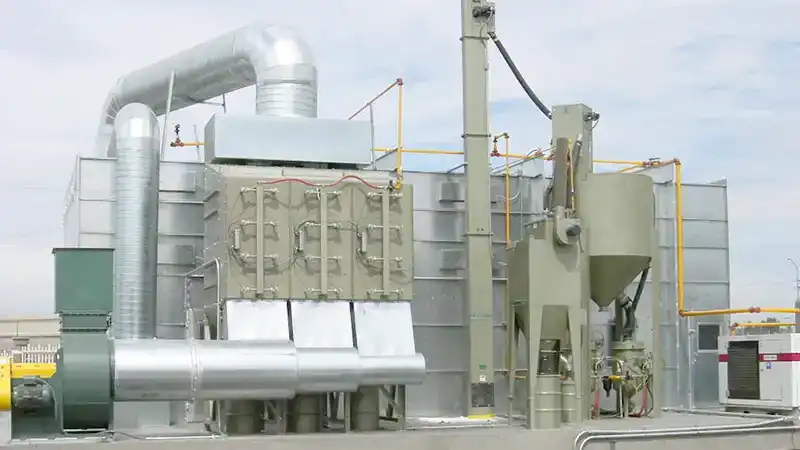

The blast booth will need supoorting equipment. It will need a dust collection system, a blast media recovery system, air replacement system, and blasting equipment for the operator.

Dust Collection: You will need some type of dust collection system for your blast booth or sanding booth. The size and style of your dust collection system will be determined by the size of the product you are treating. Larger systems will have an outdoor bag house or cartridge system to collect the dust and move clean air back to the booth.

Media Recovery Systems: The media recovery system can be as simple as sweeping up the blasting media on the floor to automatic systems with augers or conveyor belts. The automated system are located in the floor of the blast booth. They move the media to a cleaning system and then to remote hoppers to be used again.

Blasting Equipment: The blasting equipment will have an application head to direct the media to the part being stripped. The media will come from a hopper usually outside of the building. The hopper can be stand alone or part of a media recovery system. We can custom design exactly what you need you your unique application.

Panels – Flanges Pre-Punched on 6” Centers:

Panels are fabricated from 14-18 gauge prime quality G-90 galvanized steel. Panels are fastened together with nuts and bolts for maximum rigidity and ease of assembly. Holes are precision CNC punched on 6” centers. Pre-punched holes assure true panel alignment. You can assemble the booth structure yourself or have one of our experienced installation crews take care of the assembly.

Structural Support:

Beams and columns are fabricated from formed 10 Gauge Galvanized Steel or W6x9 Steel. Support is pre-punched to match corresponding panels. Support is placed on maximum 10' centers for added rigidity. Support columns anchor to a conrete floor with special concrete bolts selected for your facility concrete.

LED Illumination:

Lighting is provided by 48” long, LED type fixtures. Standard LED lighting provides low operational cost and low maintenance. The light fixtures are located throught the booth to provide clean even lighting. All fixtures are ETL listed and approved for their intended use and placement. Fixtures are supplied to accept either 120V or 277V power. 5 year limited warranty.

Product Doors:

Product entry doors shall be provided. Options for coil type roll up doors or standard swing type doors. These doors are provided with a closed cell foam rubber weather stripping seal about the perimeter and a neoprene rubber sweep seal at the threshold. The mounting hardware provided includes a panic type safety latch and four 9'' door pulls. Doors have a clear opening determined by your large equipment product requirements.

Personnel Access Doors with Window:

Personnel access doors are provided as a double wall 18-gauge galvanized steel unit sized at 36'' x 84” and are provided pre-hung in a heavy gauge steel frame ready for mounting to the spray booth. Mounting hardware includes a panic type safety latch and two 6'' door pulls.

Exhaust Fans:

Tube axial type duct fans specifically designed and constructed for use in paint spray booths and similar applications are provided for exhaust. Bearings are permanently lubricated and mounted in rubber isolators for smooth operation. The motor, drive and bearings are isolated from the exhaust air stream. Fan size and motor HP are determined by the size of the booth, system static pressure, and the required airflow to meet codes. Electric power - 208/230/460V/3PH/60HZ). Adjustable Drives.

Filtration:

Intake air filters: Rated by UL as Class 2 and are EPA registered as environmentally safe. Filters are self-supporting in an internal frame - 20'' x 20'' x 1''. Exhaust air filters are fiberglass paint arrestor pads made specifically for the collection of paint over spray. These filters are UL rated as Class 2. A filter holding grid is provided for each filter cell.

Code Compliance:

All of our large equipment paint booths are designed to meet or exceed the requirements and recommendations of the National Fire Protection Association (NFPA), Standard Number 33, as well as the Occupational Health and Safety Administration (OSHA) CFR 29.1910.107 covering the operation and construction of spray booths.
